The replacement solar modules from Les Jardins are the perfect solution to recharge your solar lights and maintain their performance. They are available in various power outputs to meet your individual needs: 200 lumens, 300 lumens, and 500 lumens with 2700K or 3000K. Whether you're looking for subtle lighting for your garden, pathways, or patios, the right solar modules ensure your lights function reliably and efficiently. They are easy to install and provide a sustainable energy source that collects sunlight during the day and provides pleasant illumination in the evening.
How does it work?
One Button – Three Modes
Example with 500 lumens:
1. Intelligent Mode (1x Flash)
- Automatic brightness adjustment according to battery level, sunlight, and night length.
- Motion sensor activated (can be deactivated by holding the button for 10 seconds when off).
- Optimal performance through automatic algorithm.
2. Personalized Mode (2x Flash)
- Motion-controlled light with individually adjustable brightness (0–500 lumens).
- Dimming by holding the button (pauses at 150 & 300 lm).
- Motion sensor activated (can be deactivated as above).
3. Forced Mode (3x Flash)
- Continuous light with adjustable brightness (5–500 lumens), independent of the motion sensor.
- Lighting duration: 5–200 hours depending on brightness.
- Dimming as in Mode 2.
4. Fourth Click = OFF
Further Information
-
Charging Status Indicator: 3 quick flashes every 15 sec. = battery > 75% charged
-
Automatic Re-activation Mode when battery is empty, as soon as sufficient energy is available
-
Tip: Always keep the solar panel clear – no covering!
200lm version:
Power: 200lm, Color temperature: 2700K, without motion and twilight sensor, Dimmable: yes, Protection class: IP66
300lm version:
Power: 300lm, Color temperature: 3000K, without motion and twilight sensor, Dimmable: yes, Protection class: IP66
500lm version:
Power: 500lm, Color temperature: 2700K, with motion and twilight sensor, Dimmable: yes, Protection class: IP66

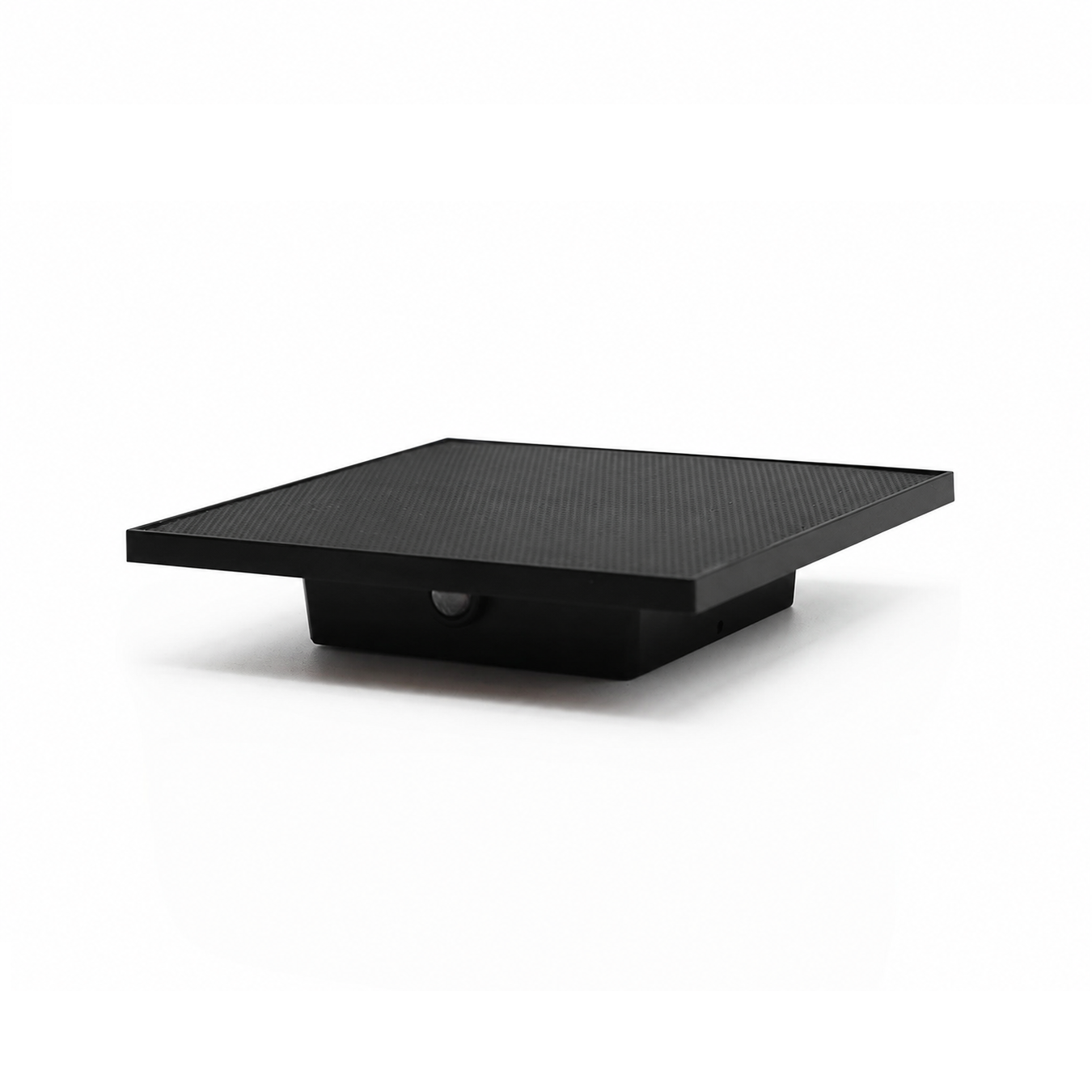

500lm MAX version:
Power: 500lm, Color temperature: 2700K, 18cm x 18cm (L x W), with motion and twilight sensor,Dimmable: yes, Protection class: IP66, extra strong thanks to 4.5W power unit
Charging time: Maximum 8 hours, flashes during charging.
1x flash = approx. 25% charged
2x flashes = between 25% and 75% charged
3x flashes = approx. 75% charged, light flashes approx. every 10 seconds:
Explanation video:
https://youtube.com/shorts/128wME9S2C4?si=i5-iejR9nn1RtOU-
Open here
